2F-96F Single Sheath - Compact Fiber Unit

Cable Construction Details:

  • Core: 2 to 96 fibers contained in a compact fiber unit designed for space efficiency.

  • Single Sheath: Lightweight, flexible, and durable sheath designed for aerial applications.

  • Water Blocking: Water Swellable Yarn ensures reliable performance by preventing moisture ingress.

  • UV and Weather Resistant: The sheath is designed to resist UV radiation and harsh weather conditions, ensuring long-term outdoor performance.

Special Features:

  • Ultra-lightweight Design: Minimizes installation costs and labor by reducing the overall weight of the cable, ideal for long aerial spans.

  • Compact Fiber Unit: Efficient fiber arrangement allows for higher fiber density in a smaller space, optimizing the use of available space in network infrastructures.

  • Dielectric Construction: Non-metallic design eliminates the need for grounding and minimizes lightning risk, making it ideal for aerial installation near power lines.

  • Durability: Resists environmental challenges, including UV exposure, extreme weather, and mechanical stress.

  • Versatile Use: Perfect for aerial applications in access and distribution networks, particularly where weight and space constraints are a concern.

Compatible with RTTH Roll Out:

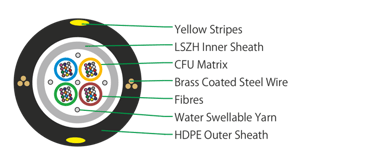

Standard Cross-Section of 48 Fibers:
