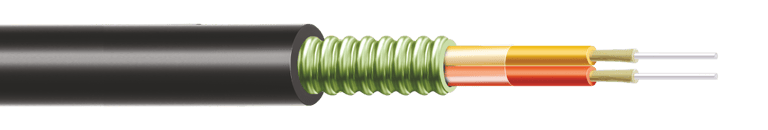

2F-6F Fiber to Antenna

Cable Construction Details:

• Fiber Count: Contains 2 to 6 optical fibers for point-to-point connectivity.

• Buffering: Tight-buffered or semi-loose buffered for protection against bending and environmental factors.

• Strength Members: Includes aramid yarn or fiberglass for enhanced tensile strength.

• Outer Sheath: UV-resistant and weatherproof outer sheath, typically made of LSZH or rugged polyethylene.

• Diameter: Compact and lightweight design for streamlined installation.

• Water Blocking: Water Swellable Yarn and Tape for moisture protection.

Special Features:

• Optimized for FTTA Applications: Specifically designed for fiber-to-the-antenna deployments in wireless communication networks.

• Compact and Lightweight: Simplifies installation and routing in tight spaces or elevated positions.

• Weather Resistant: UV and water-resistant sheath ensures durability in outdoor conditions.

• High Tensile Strength: Suitable for aerial installations and environments requiring robust pull performance.

• Flexible Deployment: Supports direct connections to remote radio units and antennas.

• Superior Signal Integrity: Ensures low attenuation and consistent signal quality over long distances.

• Customizable: Available in various configurations to match specific project needs.

Compatible with Wireless Telecommunications Network Installations:

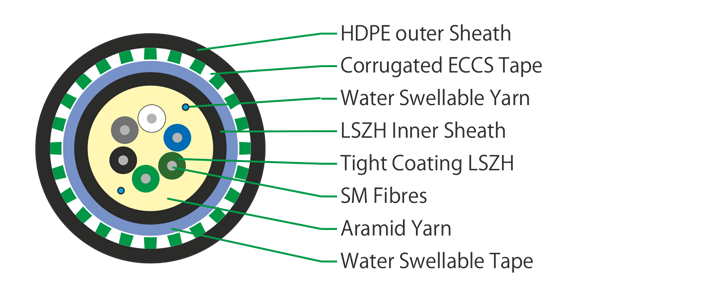

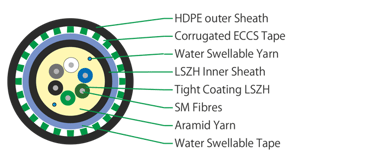

Standard Cross-Section of 6 Fibers:
