1F-4F Flat Drop

Cable Construction Details:

• Fiber Count: Available in 1F to 4F configurations.

• Fiber Type: Optimized for tight bends and flexible installations in FTTx applications.

• Buffer Coating: Primary-coated fibers with a typical 250µm coating diameter, color-coded for easy identification and fiber management.

• Sheath Material: The outer sheath is made of UV-resistant material, providing protection against fire hazards and toxic smoke, ensuring safety in enclosed or public spaces.

• Cable Dimensions: Flat-profile construction, ranging from 3.0 to 5.0 mm in width and 1.5 to 3.0 mm in height, depending on the fiber count.

• Rip Cord: A rip cord is included to make stripping the outer sheath easier, providing quick access to the fibers during installation.

• Markings: Sequential length markings for ease of installation and accurate cutting during network deployment.

Compatible with Indoor Drop Installations:

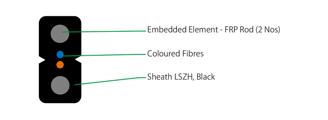

Standard Cross-Section Layout for 2 Fibers:

Special Features:

• Compact and Flat Design: The flat profile of the cable allows for space-efficient installations in tight spaces and ducts, minimizing installation impact.

• Lightweight and Flexible: The cable is lightweight, making it easy to handle and install, reducing labor and time costs during deployment.

• Bend-Insensitive Fibers: Uses bend-insensitive fibers, which are ideal for tight bends, ensuring signal integrity even in high-density installations.
