144F-864F Double Sheath - ECCS Tape - Ribbon Type

Cable Construction Details:

• Core: 144 to 864 fibers in ribbon configuration for high density.

• Multi-Tube: Loose tubes house and protect ribbons.

• Double Sheath: Inner sheath for core protection; outer sheath for durability.

• ECCS Tape Armor: Provides mechanical protection and electrical grounding.

• Strength Member: FRP rod ensures tensile strength.

• Fillers: Maintain cable structure.

• Rip Cord: Incorporated to open the sheath.

Special Features:

• High Fiber Capacity: Supports up to 864 fibers for backbone networks.

• Efficient Splicing: Ribbon design allows mass fusion splicing.

• Enhanced Protection: Double sheath and ECCS armor resist impact, compression, and rodents.

• Environmental Resistance: Shields against moisture, chemicals, and UV.

• Durable Design: Ideal for underground duct installations.

Compatible with Duct Installations:

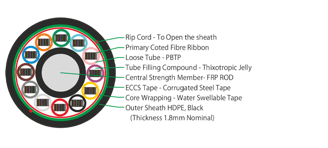

Standard Cross-Section Layout for 864 Fibers:
