12F-864F Single Sheath - Unarmored

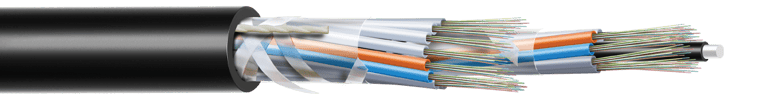

Cable Construction Details:

• Core: 12 to 864 optical fibers in a multi-tube structure for high-density transmission.

• Buffer Tubes: Individual fiber protection for easy identification and splicing.

• Multi-Tube Design: Provides excellent fiber management for underground duct installations.

• Dielectric Construction: Non-metallic design prevents electrical interference.

• Primary Sheath: Protects against moisture, chemicals, and physical stress.

• Outer Sheath: Resists UV, moisture, and physical damage.

• Rip Cord: Incorporated to open the sheath.

Special Features:

• High Fiber Density: 12 to 864 fibers for high-capacity transmission.

• Fiber Management: Multi-tube construction simplifies splicing and organization.

• Electrical Safety: Dielectric design prevents interference.

• Environmental Protection: Shields against moisture and physical stress.

• Space-Efficient: Compact multi-tube structure ideal for underground ducts.

• Cost-Effective: Unarmored design offers protection at a lower cost.

Compatible with Duct Installations, Pulled and Blown:

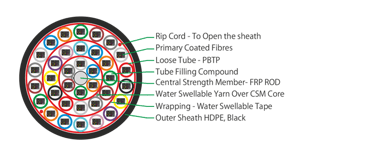

Standard Cross-Section of 864 Fibers:
