12F-576F Single Sheath - Micro Duct - 200 Um

Cable Construction Details:

• Fiber Count: Configurations available from 12 fibers to 576 fibers.

• Fiber Type: 200 µm single-mode fibers for enhanced bend performance and high-density applications.

• Tube Design: Multi-Tube Construction: Fibers are distributed across multiple loose tubes, offering excellent flexibility and fiber protection. Loose tubes are filled with thixotropic gel for cushioning and water-blocking. The number of tubes increases with fiber count for optimized packing and organization.

• Central Strength Member: A central strength member provides structural stability and resists bending or deformation.

• Filler Elements: Non-fiber-containing filler rods are included as needed to maintain the circular shape and structural balance of the cable.

• Water-Blocking: Water-swellable yarn protects the fibers from water ingress for long-term reliability.

• Outer Sheath: Made from UV-resistant material for environmental protection and compliance with fire safety standards.

• Sheath Dimensions: Diameter varies depending on the fiber count, ranging from 8 mm to 14 mm, ensuring compatibility with standard microduct systems.

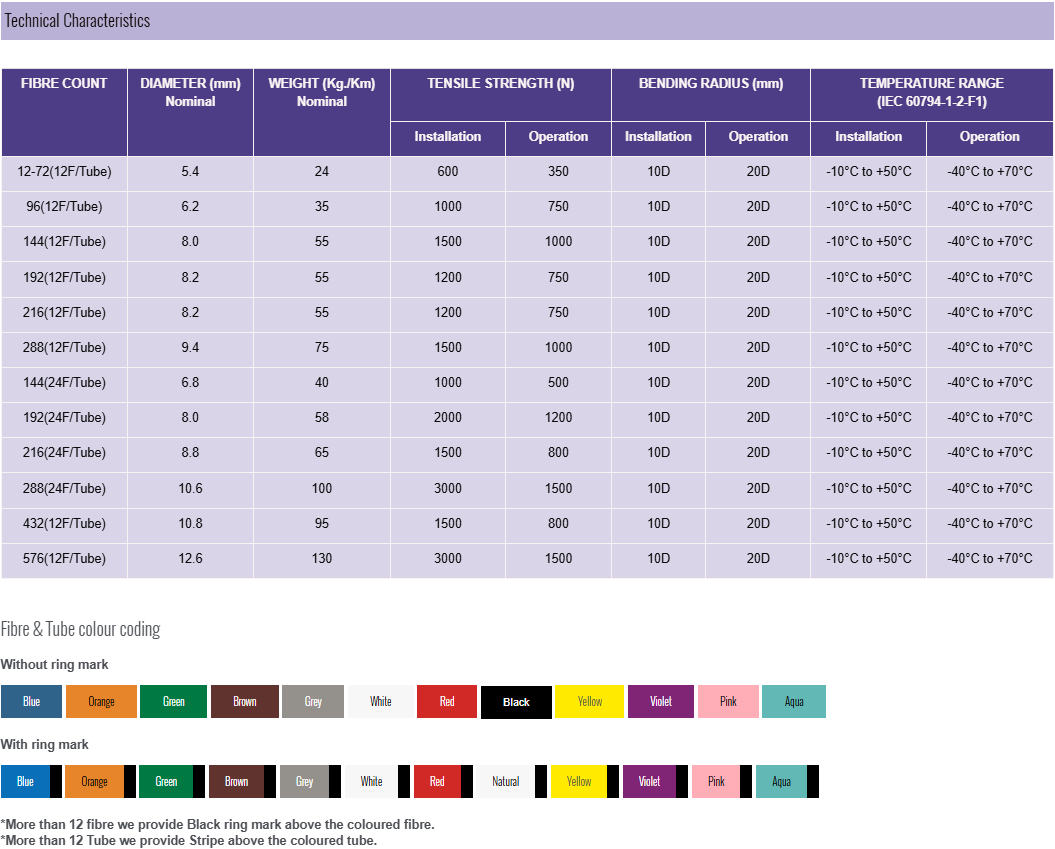

• Color-Coded Fibers and Tubes: Fibers and tubes are color-coded following industry standards to simplify identification during splicing and maintenance.

• Rip Cord: Integrated rip cord beneath the sheath for easy and precise sheath removal during installation.

• Markings: Sequential length markings on the outer sheath for accurate cutting and measurement.

Compatible with Duct Installations, Pulled and Blown:

Standard Cross-Section Layout for 576 Fibers:

Special Features:

• High Fiber Capacity: Accommodates 12 fibers to 576 fibers, with multiple loose tubes for organized and high-density fiber management.

• 200 µm Fiber Technology: Utilizes 200 µm single-mode fibers, enabling a smaller cable diameter without compromising fiber count or performance.
