12F-576F Single Sheath - 250 Um

Cable Construction Details:

• Core: 12 to 576 fibers in multiple tubes for high fiber density.

• Sheath: Single outer sheath for durability and compactness.

• Fiber Coating: 250um fibers for optimized performance and space efficiency.

• Tubes: Multiple tubes for organized fiber management.

• Strength Member: A FRP Rod is used as the Central Strength Member.

• Water Blocking: Water Swellable Yarn over CSM is used to prevent moisture ingress.

• Microduct Compatibility: Designed for installation in microducts.

• Rip Cord: Incorporated for easy stripping and access to fibers.

Special Features:

• High Fiber Capacity: 12 to 576 fibers in a compact design.

• Microduct Optimization: Efficient for high-density fiber routing.

• Durability: Protection from mechanical stresses and environmental conditions.

• Waterproofing: Moisture-resistant design for long-term fiber integrity.

• Lightweight and Flexible: Reduces labor and installation costs.

• UV & Weather Resistant: Suitable for outdoor environments.

• Versatile Use: Ideal for FTTH, broadband, and high-capacity networks

Compatible with Duct Installations, pulled and blown:

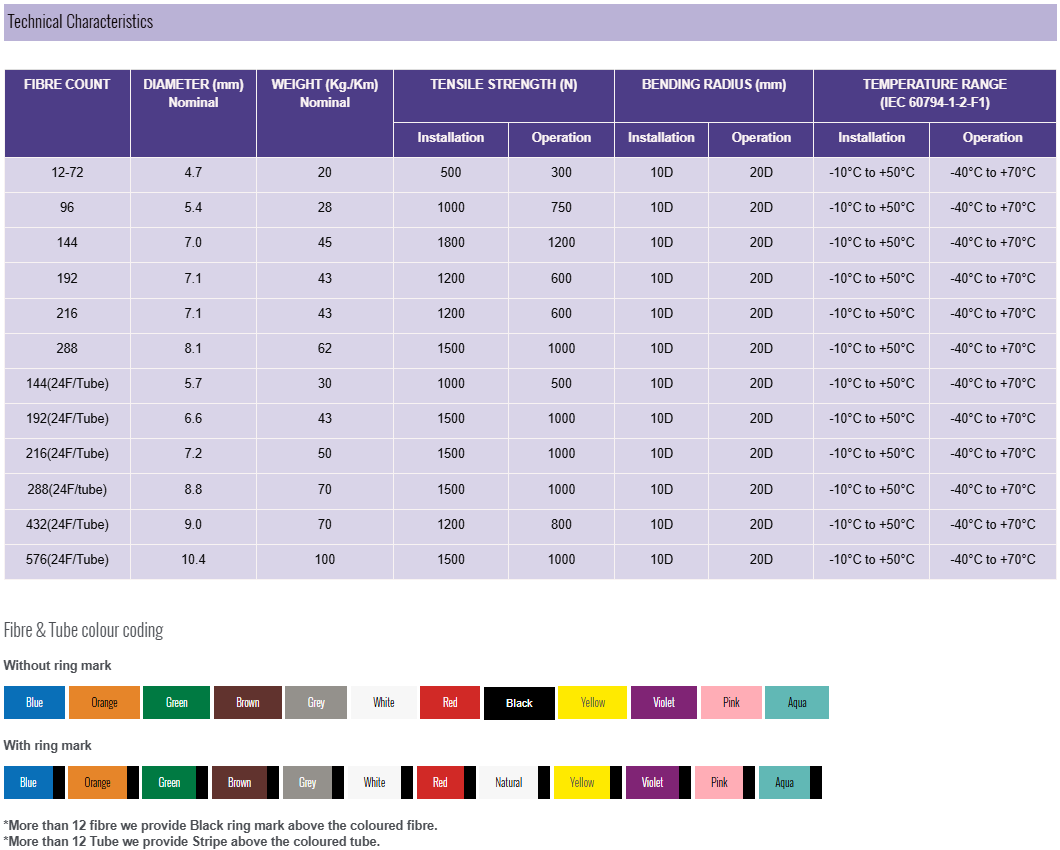

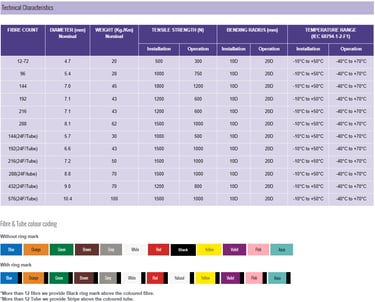

Standard Cross-Section of 576 Fibers:
