12F-576F Single Sheath - 200 Um

Cable Construction Details:

• Core: 12 to 576 optical fibers in multiple tubes for high fiber density.

• Sheath: Single outer sheath for protection and compactness.

• Fiber Coating: 200um fibers for space-saving and performance.

• Tubes: Organized fiber tubes for efficient management.

• Strength Member: An FRP Rod is used as the central strength member.

• Water Blocking: Water swellable yarn over CSM is used to prevent moisture ingress.

• Microduct Compatibility: Designed for microduct installation.

• Rip Cord: Incorporated for easy stripping and access to fibers.

Special Features:

• High Fiber Capacity: Supports 12 to 576 fibers in a compact design.

• Microduct Optimization: Ideal for high-density fiber deployments in microducts.

• Durability: Single sheath and strength member ensure mechanical protection.

• Waterproof: Water-swellable yarn maintains fiber integrity.

• Flexible: Lightweight and easy to install, reducing labor costs.

• UV & Weather Resistant: Suitable for outdoor installations.

• Versatile Use: Ideal for FTTH, broadband, and high-capacity networks.

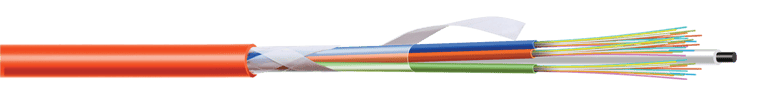

Compatible with Duct Installations, pulled and blown:

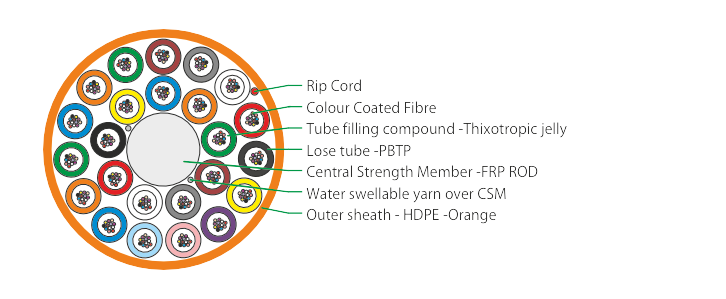

Standard Cross-Section of 576 Fibers:
