12F-288F Single Sheath - Rodent Protected

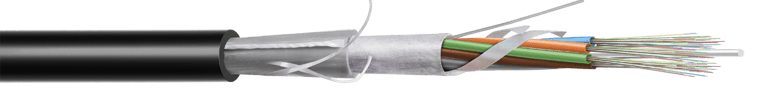

Cable Construction Details:

• Core: 12 to 288 optical fibers in a multi-tube structure for high-density transmission.

• Buffer Tubes: Individual fiber protection for easy identification and splicing.

• Multi-Tube Design: Enhanced fiber management for complex underground duct installations.

• Rodent Protection: Specialized materials prevent damage from rodents.

• Dielectric Construction: Non-metallic design resists electrical interference.

• Primary Sheath: Protection against moisture, chemicals, and physical stress.

• Outer Sheath: Resists UV, moisture, and physical damage.

• Rip Cord: Incorporated to open the sheath.

Special Features:

• High Fiber Density: 12 to 288 fibers for high-capacity transmission.

• Rodent Protection: Safeguards against rodent damage in underground settings.

• Fiber Management: Simplifies splicing with multi-tube construction.

• Electrical Safety: Dielectric design prevents interference.

• Environmental Protection: Shields from moisture and physical stress.

• Space-Efficient: Compact design for efficient underground installation.

• Durable: Rodent protection ensures long-term reliability.

Compatible with Duct Installations, Pulled and Blown:

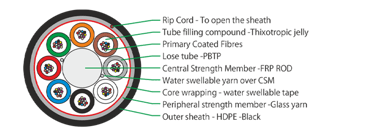

Standard Cross-Section Layout for 96 Fibers:
